WPC Acoustic Panel Quantity: How Many Panels Do You Need?

How do you calculate WPC acoustic panel quantity for a project? Use the same wall-width formula as other slat panels, then add 20-30% more panels than fiberglass because WPC usually has a lower NRC. A 10-foot wall with 12-inch wide WPC panels needs 10 panels for coverage, or 12-13 panels if you need real acoustic performance matching fiberglass.

WPC panels are popular because they resist moisture, termites, and wear. They also look like wood at a lower cost. The trade-off is sound absorption. If you treat WPC panels the same as high-NRC wood slat or fiberglass, you may end up with a room that still echoes.

This guide explains how to calculate WPC acoustic panel quantity for walls and ceilings, adjust for NRC, account for packaging and MOQs, and avoid the mistakes that waste material budget.

Key Takeaways

• WPC acoustic panel quantity starts with wall width ÷ panel width, rounded up.
• Common WPC panel sizes include 150-300 mm widths and 2.4-3 m lengths.
• Add 20-30% more WPC panels than fiberglass to match absorption because WPC NRC is usually lower.
• Target 25-35% wall coverage for offices and 50-60% ceiling coverage for open-plan spaces.
• Round up to box quantities or container MOQs for factory-direct B2B orders.

Quick Answer: WPC Acoustic Panel Quantity by Wall Width

This table gives a fast estimate for vertical wall installation using common WPC panel widths.

These counts cover the full wall width with standard-height panels. If your goal is acoustic treatment rather than full visual coverage, use the coverage percentage method below.

Need a project-specific WPC panel count? Send us your wall dimensions and we will calculate quantity, packaging, and freight.

Common WPC Acoustic Panel Sizes

WPC acoustic panels come in a range of widths and lengths. Width drives the quantity calculation; length usually covers standard ceiling heights without seams.

Credence Industries lists WPC acoustic panel widths of 149, 167, 235, 285, and 299 mm, all 2,440 mm long, with custom dimensions available. Always use the exact width of the product you are ordering; a 150 mm panel and a 300 mm panel give very different counts.

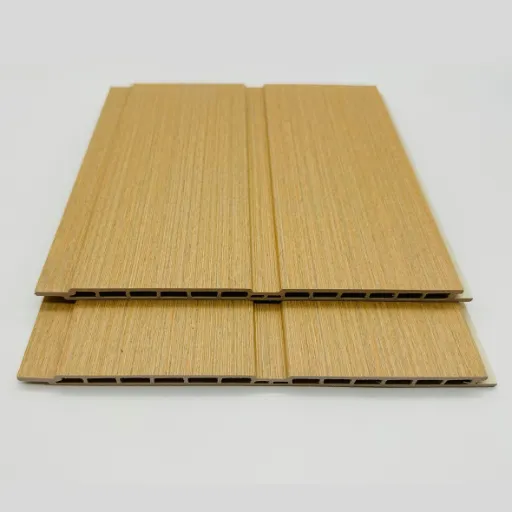

The Formula for WPC Acoustic Panel Quantity

The basic formula is simple:

Number of panels = wall width ÷ panel width, rounded up

Example 1: 5-Meter Wall with 600 mm WPC Panels

• Wall width: 5 m = 5,000 mm
• Panel width: 600 mm
• Panels needed: 5,000 ÷ 600 = 8.33, rounded up = 9 panels

Example 2: 12-Foot Wall with 12-Inch WPC Panels

• Wall width: 12 ft = 144 in
• Panel width: 12 in
• Panels needed: 144 ÷ 12 = 12 panels

Add the Waste Factor

After the base count, add 5-10% for:

• Cuts around outlets, switches, and fixtures
• Door and window trim
• Corner and edge pieces
• Damage during shipping or install
• Future repairs

For a 50-panel commercial job, order 53-55 panels.

Mini-Story: A hotel developer in Dubai chose WPC slat panels for a 40-meter lobby feature wall. The architect ordered 67 panels based on exact width math using 600 mm panels. During installation, the crew discovered two large columns and six recessed light fixtures that required cuts. They ran short by eight panels. Because WPC panels ship from overseas, the replacement order added three weeks to the schedule. A 10% waste buffer and a site survey would have prevented the delay.

Coverage Percentage for WPC Panels

For acoustic performance, you do not always need full wall coverage. The right percentage depends on the room type and the panel’s NRC.

To apply coverage percentage to WPC acoustic panel quantity:

1. Calculate total treatable wall or ceiling area.
2. Multiply by the target coverage percentage.
3. Divide by the area of one WPC panel.
4. Add 20-30% NRC adjustment if matching fiberglass performance.
5. Add 5-10% waste.

Example: Conference Room Feature Wall

• Wall area: 4 m × 3 m = 12 m²
• Target coverage: 30%
• Coverage area: 12 × 0.30 = 3.6 m²
• 600 mm × 2,400 mm WPC panel area: 1.44 m²
• Panels needed: 3.6 ÷ 1.44 = 2.5, rounded up = 3 panels
• NRC adjustment for WPC: +25% = 3 × 1.25 = 4 panels
• Add 10% waste = 5 panels

For more on coverage percentages across room types, see our guide on acoustic panel coverage percentage.

Why WPC Needs More Panels Than Fiberglass

WPC panels absorb less sound per square foot than fiberglass or mineral wool. The NRC difference is the reason.

If a room needs 100 sq ft of effective absorption and you use fiberglass with NRC 0.90, you need 111 sq ft of panel area. With WPC at NRC 0.60, you need 167 sq ft of panel area. That is 50% more material.

The exact WPC NRC depends on the backing material, groove pattern, perforation design, and density. Always ask the supplier for a published test report rather than trusting a marketing claim.

Commercial Acoustics recommends covering 25-35% of wall and ceiling area with NRC 0.85+ material for speech rooms. With lower-NRC materials, increase coverage proportionally.

WPC vs Natural Wood Slat: Quantity Differences

Natural wood slat panels and WPC slat panels serve different project needs. The quantity calculation changes depending on which you choose.

If a project calls for 80 natural wood slat panels, the same acoustic target might require 95-105 WPC panels. WPC is the better choice for humid lobbies, busy corridors, and exterior-facing walls. Natural wood slat is often chosen for executive offices, hotel suites, and reception areas where the visual warmth of real wood matters.

For a dedicated guide on natural wood slat quantities, see our article on how many wood slat acoustic panels per wall.

Calculating WPC Panels for Commercial Projects

Here are three real-world examples.

Example 1: Open-Plan Office

• Floor area: 200 m²
• Ceiling height: 3 m
• Target: 20% wall coverage, 55% ceiling coverage
• Wall area (assume 2 long walls treatable): 120 m²
• Ceiling area: 200 m²
• WPC panel: 600 mm × 2,400 mm = 1.44 m²
• Wall panels: 120 × 0.20 = 24 m² ÷ 1.44 = 17 panels
• Ceiling panels: 200 × 0.55 = 110 m² ÷ 1.44 = 77 panels
• NRC adjustment +25%: (17 + 77) × 1.25 = 118 panels
• Add 10% waste: 130 panels

Example 2: Hotel Lobby Feature Wall

• Wall: 15 m wide × 4 m high = 60 m²
• Full visual coverage
• 300 mm × 2,440 mm WPC panel = 0.73 m²
• Panels needed: 60 ÷ 0.73 = 83 panels
• Add 10% waste: 91 panels

Example 3: Restaurant Accent Bands

• Band height: 1.2 m on two walls, total length 24 m
• Area: 28.8 m²
• Target coverage: 100% of bands
• 240 mm × 2,440 mm WPC panel = 0.59 m²
• Panels needed: 28.8 ÷ 0.59 = 49 panels
• Add 10% waste: 54 panels

Packaging, MOQ, and Order Quantities

For B2B projects, quantity is not just about the wall. It is also about how panels ship.

Round your calculated WPC acoustic panel quantity up to the nearest box, then to the nearest container or MOQ. Ordering 102 panels when boxes hold 10 may mean buying 110 panels. That is better than receiving 102 loose panels that are harder to protect in transit.

At Linyi Yuheng International Trading Co., Ltd., we offer standard WPC acoustic panel sizes and custom options for bulk orders. We can help you find the quantity that matches both your layout and your shipping plan.

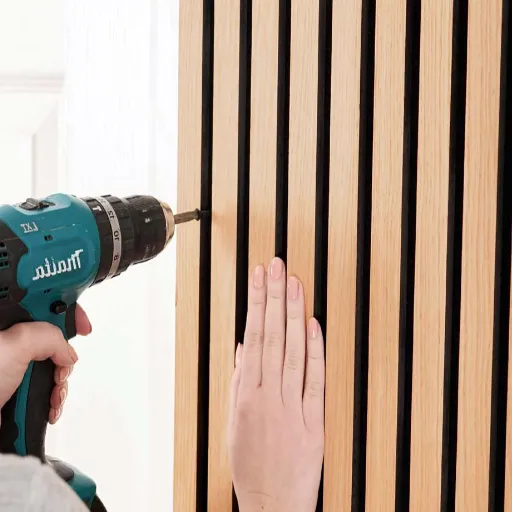

Installation Tips That Affect Quantity

Small installation choices change how many panels you need.

Vertical vs Horizontal Layout

• Vertical: most common; count = wall width ÷ panel width; less waste.
• Horizontal: count = wall height ÷ panel width; more seams; often 10-15% more waste.

Grooved vs Perforated WPC

• Grooved panels expose more backing felt and usually absorb slightly more sound.
• Perforated panels with dense WPC faces may absorb less unless backed with thick felt.
• Check the published NRC for the exact pattern before finalizing quantity.

Adhesive and Fasteners

• One adhesive cartridge typically covers 4-5 panels.
• Heavy WPC panels may need more fasteners than lightweight PET panels.
• Add 5% extra material if your installer prefers mechanical fixation over adhesive.

Common Mistakes When Calculating WPC Acoustic Panel Quantity

1. Treating WPC like fiberglass. WPC absorbs less; increase the count.
2. Using wall area instead of wall width. Panels are tall; width is the limiting factor.
3. Ignoring box quantities. Loose panels are harder to ship and protect.
4. Forgetting the MOQ. Custom sizes and colors often need a full production run.
5. Skipping the site survey. Columns, fixtures, and outlets create unexpected cuts.
6. Not checking published NRC. Marketing claims vary; test reports do not.
7. Ordering exact counts. A 5-10% waste buffer prevents delays.

Frequently Asked Questions

How do I calculate WPC acoustic panel quantity?

Divide the wall width by the WPC panel width and round up. Then add 5-10% for waste and 20-30% if you need to match the absorption of higher-NRC materials.

What is the standard size of WPC acoustic panels?

Common widths are 150-300 mm and 600 mm, with lengths of 2,400-2,440 mm. US sizes often use 12-inch or 24-inch widths and 96-inch lengths.

How much wall does one WPC acoustic panel cover?

A 600 mm × 2,400 mm panel covers 1.44 m². A 12-inch × 96-inch panel covers 8 sq ft. Narrower slat panels cover proportionally less area.

Do WPC panels need more coverage than wood slat panels?

Usually yes. WPC panels often rate NRC 0.50-0.75, while quality wood slat panels can reach 0.65-0.90. Plan 20-30% more WPC panels to match the acoustic performance of fiberglass.

What is the NRC of WPC acoustic panels?

WPC acoustic panels typically range from NRC 0.50 to 0.75. Some high-quality products with thick felt backing may reach 0.80-0.90. Always request a published test report.

How many WPC panels come in a box?

Most suppliers pack 8-10 WPC slat panels per box, depending on width. Confirm packaging before ordering and round up to box quantities.

Can WPC acoustic panels be used on ceilings?

Yes. WPC panels can be installed on ceilings as baffles, clouds, or flat panels. Because they are heavier than PET or fiberglass, ensure the ceiling structure can support the load.

Conclusion

WPC acoustic panel quantity is a straightforward calculation once you account for panel width, coverage target, NRC, and waste. Start with wall width divided by panel width, apply the right coverage percentage, and increase the count for WPC’s lower absorption.

Keep these points in mind:

• Use wall width ÷ panel width, rounded up.
• Add 5-10% waste for cuts and unexpected obstacles.
• Add 20-30% more panels than fiberglass to match acoustic performance.
• Target 25-35% wall coverage for offices and 50-60% ceiling coverage for open plans.
• Round up to box quantities and MOQs for B2B factory-direct orders.

For the bigger picture on office acoustic treatment, see our guide on how many acoustic panels do I need for an office. For natural wood slat quantities, read our article on how many wood slat acoustic panels per wall. And for coverage percentage guidance, see acoustic panel coverage percentage.

At Linyi Yuheng International Trading Co., Ltd., we manufacture WPC acoustic panels in standard and custom sizes for offices, hotels, restaurants, and commercial spaces worldwide. Send us your project dimensions and performance targets and we will calculate the exact WPC acoustic panel quantity, packaging, and factory-direct quote.
