Advanced WPC Outdoor Wall Panel & Anti-UV Cladding
Linyi Yuheng International delivers 100% waterproof wall panels and exterior siding engineered for durability. Our Co-extrusion technology ensures long-lasting aesthetics for modern architectural facades.
20+ Years
Industry Experience
The Future of Exterior Siding
High-performance material science for modern architectural facades.
What is Yuheng WPC Outdoor Wall Panel?
Yuheng WPC Outdoor Wall Panel is a high-density, eco-friendly waterproof wall panel designed for permanent exterior cladding. By integrating 60% recycled wood fiber with 30% advanced high-density polyethylene (HDPE), we produce a composite siding that outperforms traditional timber in every metric.
Our anti-UV cladding utilizes a unique co-extrusion technology, wrapping the core in a 360-degree protective shield. This ensures that your building facade remains vibrant and structurally sound against heavy moisture, salt air, and intense solar radiation without the need for annual staining or maintenance.
All-Weather Proof
Engineered to resist swelling and rot in extreme 100% humidity environments.
Maintenance-Free
Eliminates the cost of professional painting, oiling, and chemical treatments.
Architectural Beauty
Authentic wood grain textures with modern 3D shadow lines for premium aesthetics.
Sustainable Choice
100% recyclable, formaldehyde-free, and supportive of LEED green building credits.
Anti-UV Stability
Engineered with advanced light stabilizers to prevent fading even under the harshest anti-UV cladding requirements.
100% Waterproof
Non-porous waterproof wall panel technology eliminates moisture absorption, rot, and fungal growth.
Class B1 Fire Rated
Compliant with international safety standards for commercial and residential exterior siding projects.
Fast Installation
The Tongue & Groove system reduces labor time and costs by up to 40% compared to traditional siding.
WPC vs. Traditional Exterior Siding
Why modern architects are switching to Wood-Plastic Composites.
| Feature | Yuheng WPC Wall Panel | Natural Wood Siding |
|---|---|---|
| Service Life | 20+ Years | 5-8 Years |
| Maintenance | Zero Painting/Oiling | Annual Treatment Required |
| Termite Resistance | 100% Resistant | Highly Vulnerable |
| Color Stability | High (Anti-UV Shield) | Rapid Greying & Fading |
| Installation | Hidden Clip System | Exposed Nails/Screws |
Technical Specifications
Precise data for architects, contractors, and project managers.
Product Parameters
| Product Name | Premium WPC Outdoor Wall Panel |
| Primary Materials | 60% Wood Fiber, 30% HDPE, 10% Additives |
| Standard Width | 148mm / 156mm / 170mm (Effective Width) |
| Thickness | 21mm / 24mm / 26mm |
| Standard Length | 2.2m / 2.9m / 5.8m (Customizable) |
| Surface Finish | Co-extrusion / 3D Embossed / Sanded |
| Profile Type | Tongue & Groove / Great Wall (Fluted) |
Physical Performance
| Water Absorption | < 0.5% (ASTM D1037) – Waterproof |
| UV Resistance | Grade 4-5 (ISO 105-A02) – Anti-UV |
| Fire Retardant | Class B1 (EN 13501-1) – Flame Retardant |
| Flexural Strength | > 25 MPa (ASTM D790) |
| Hardness | > 60 HRR (Shore D) |
| Formaldehyde | E0 Grade (Non-toxic) |
| Service Life | 20 – 25 Years (Residential / Commercial) |
< 0.5%
Water Absorption Rate
Grade 4-5
UV Color Stability
Class B1
Fire Rating
WPC Wall Panel Collections
From cost-effective essentials to premium architectural finishes.
Best Value
Classic Collection
The standard for residential exterior siding. Offers a natural timber texture with reliable waterproof performance.
- Cost-competitive for large volumes
- Natural deep-embossed texture
- Standard waterproof properties
Premium Choice
Co-extrusion Collection
The ultimate anti-UV cladding. Features a 360° protective shield for maximum resistance to fading and scratches.
- Highest UV stability (Grade 4-5)
- Superior stain & scratch resistance
- 25-year residential warranty
3D Design
Great Wall Series
Modern 3D fluted panels that create dynamic shadow lines. Ideal for decorative waterproof wall panel accents.
- Unique architectural 3D shadows
- Seamless interlocking system
- Versatile for facades and ceilings
Versatile Application Scenarios
Yuheng WPC Outdoor Wall Panel systems are designed for high-end architectural performance.
Commercial Facades
Ideal for office buildings, shopping malls, and corporate headquarters. Our anti-UV cladding ensures long-term color stability, while the Class B1 fire rating meets stringent commercial safety codes.
Residential Siding
Transform luxury villas and residential developments with exterior siding that captures the warmth of natural wood. The waterproof wall panel technology prevents rot even in high-humidity coastal climates.
Garden Landscapes
Enhance outdoor leisure spaces, garden walls, and patio enclosures. These panels withstand termite attacks and soil contact better than any natural timber alternative.
Facade Renovations
Update aging buildings with a fresh, modern look. The fast interlocking installation system allows for rapid project completion with minimal disruption to occupants.
Effortless Facade Installation
Our waterproof wall panel system uses a professional Tongue & Groove design for rapid deployment.
Install Substructure
Fix WPC or Aluminum joists to the wall with a maximum span of 30-40cm to support the Exterior siding.
Starter Profile
Secure the first anti-UV cladding board at the bottom using starter clips, ensuring it is perfectly level.
Tongue & Groove
Slide the next board into place. The interlocking system hides all screws for a clean, seamless architectural look.
Corner Finishing
Install L-profiles or edge trims at the corners and window frames to complete your WPC Outdoor Wall Panel project.
Pro Installation Tips
Maximize the lifespan of your exterior cladding.
- Expansion Gaps: Always leave a 5mm gap between board joints to allow for natural thermal expansion and contraction.
- Airflow: Ensure there is a minimum 20mm air cavity behind the boards to prevent moisture buildup.
- Fastening: Use stainless steel 304 screws to prevent rusting in humid or coastal environments.
- Cutting: Use standard woodworking tools with carbide-tipped blades for the smoothest finish.
Global Quality Standards
Our WPC Outdoor Wall Panel products are manufactured to meet and exceed the most rigorous international building codes and environmental safety regulations.
CE Certified
Fully compliant with EU safety, health, and environmental protection requirements for Exterior siding.
SGS Tested
Verified laboratory data on waterproof wall panel performance, UV aging, and mechanical strength.
FSC Certified
Ensuring our wood fibers come from responsibly managed forests, promoting eco-friendly anti-UV cladding.
ISO 9001:2015
Rigorous quality management systems in our factory to ensure consistent batch-to-batch product excellence.
Compliance & Project Safety Guarantee
Every shipment of Yuheng WPC Outdoor Wall Panels is accompanied by technical data sheets and compliance certificates. We provide complete fire test reports (Class B1) and non-toxic certificates (E0 Formaldehyde) to ensure your project passes all local government inspections with ease.
Why Partner with Yuheng International?
Your premier global provider of high-performance WPC Outdoor Wall Panel solutions.
Strategic Logistics Hub
Located in Linyi, China’s wood and logistics center, we provide faster delivery times and more competitive shipping rates for your exterior siding bulk orders.
OEM & ODM Flexibility
We support full customization of colors, textures, and dimensions for WPC Outdoor Wall Panels, tailoring solutions to your specific architectural requirements.
Integrated Manufacturing
Our facility integrates R&D and high-speed extrusion lines to ensure every waterproof wall panel meets the highest durability and safety standards.
24/7 Global Support
Serving over 50 countries, we offer one-stop international trade solutions including technical guides, customs clearance, and dedicated project management.
20+
Years of Expertise
500+
Global Projects
60+
Color Options
24h
Response Guarantee
Frequently Asked Questions
Expert answers regarding our WPC Outdoor Wall Panel systems.
How long does the WPC Outdoor Wall Panel last?
Yuheng WPC Outdoor Wall Panels are designed for long-term durability. In standard exterior environments, they have a service life of 20 to 25 years. Our co-extrusion technology provides an extra layer of protection, making them significantly more durable than traditional Exterior siding.
Do the panels fade over time under intense sun?
Our anti-UV cladding is engineered with high-grade light stabilizers. While all outdoor materials experience a minor initial weathering period (slight color shift in the first 3-6 months), our panels reach a stabilized state and maintain their rich color for years without the grey-out effect seen in natural wood.
Is maintenance required for waterproof wall panels?
The primary advantage of our waterproof wall panel is that it is virtually maintenance-free. It never needs painting, staining, or oiling. Occasional cleaning with soap and water is all that is required to keep the facade looking brand new.
Can I install WPC Wall Panels directly on a brick wall?
No, we do not recommend direct mounting. To ensure proper ventilation and allow for thermal expansion, a substructure of WPC or aluminum joists (battens) must be installed first. This air gap prevents moisture buildup and ensures the structural integrity of your Exterior siding.
Do you support bulk wholesale and OEM customization?
Yes. As a leading manufacturer based in Linyi, we specialize in B2B bulk supply. We offer OEM services for custom colors, lengths, and profiles to meet the specific requirements of large-scale real estate and commercial projects.
WPC Outdoor Decking
High-load bearing, anti-slip composite flooring for pool surrounds and patios.

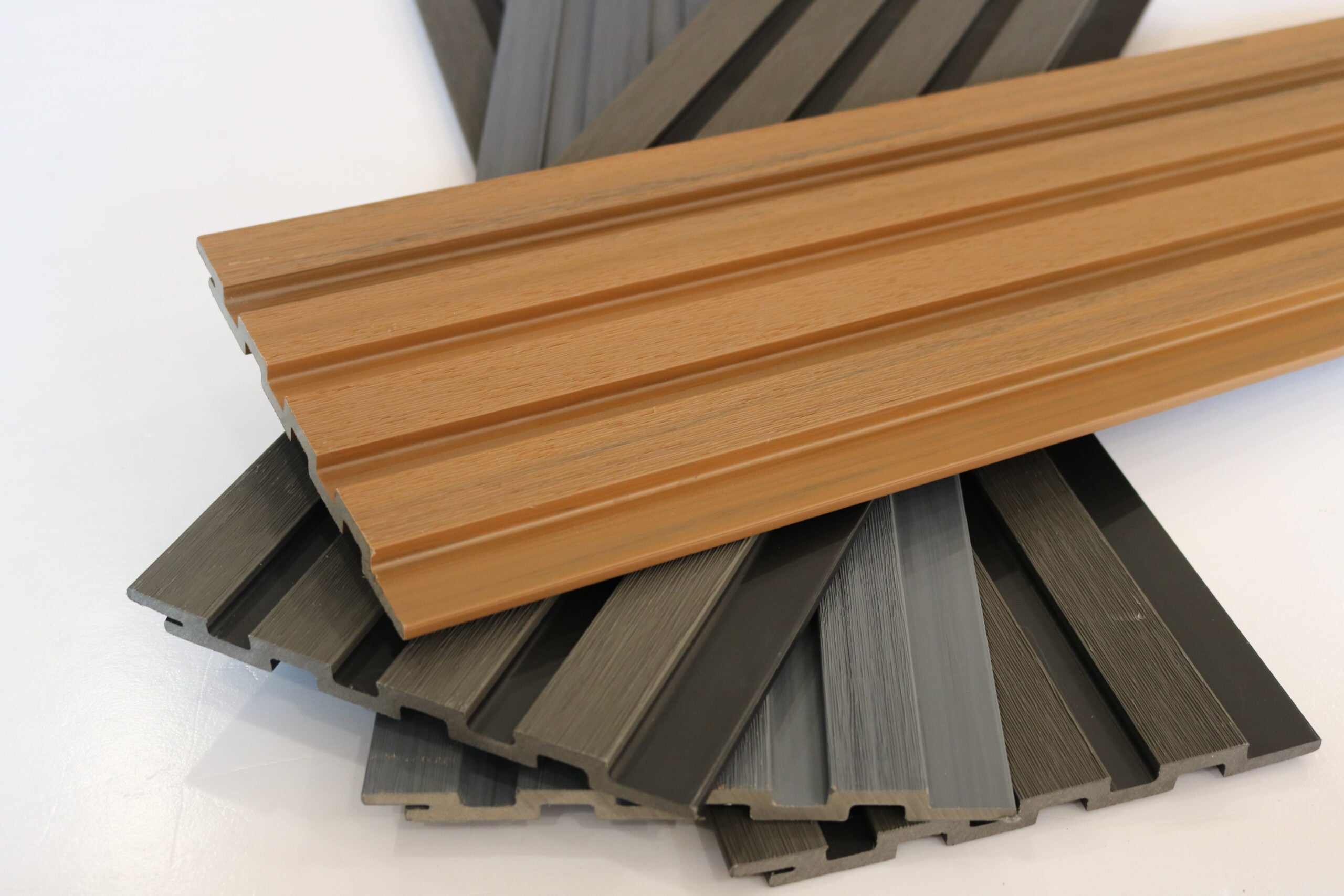

Outdoor Great Wall Panel
3D fluted textures creating architectural shadow lines for decorative facades.

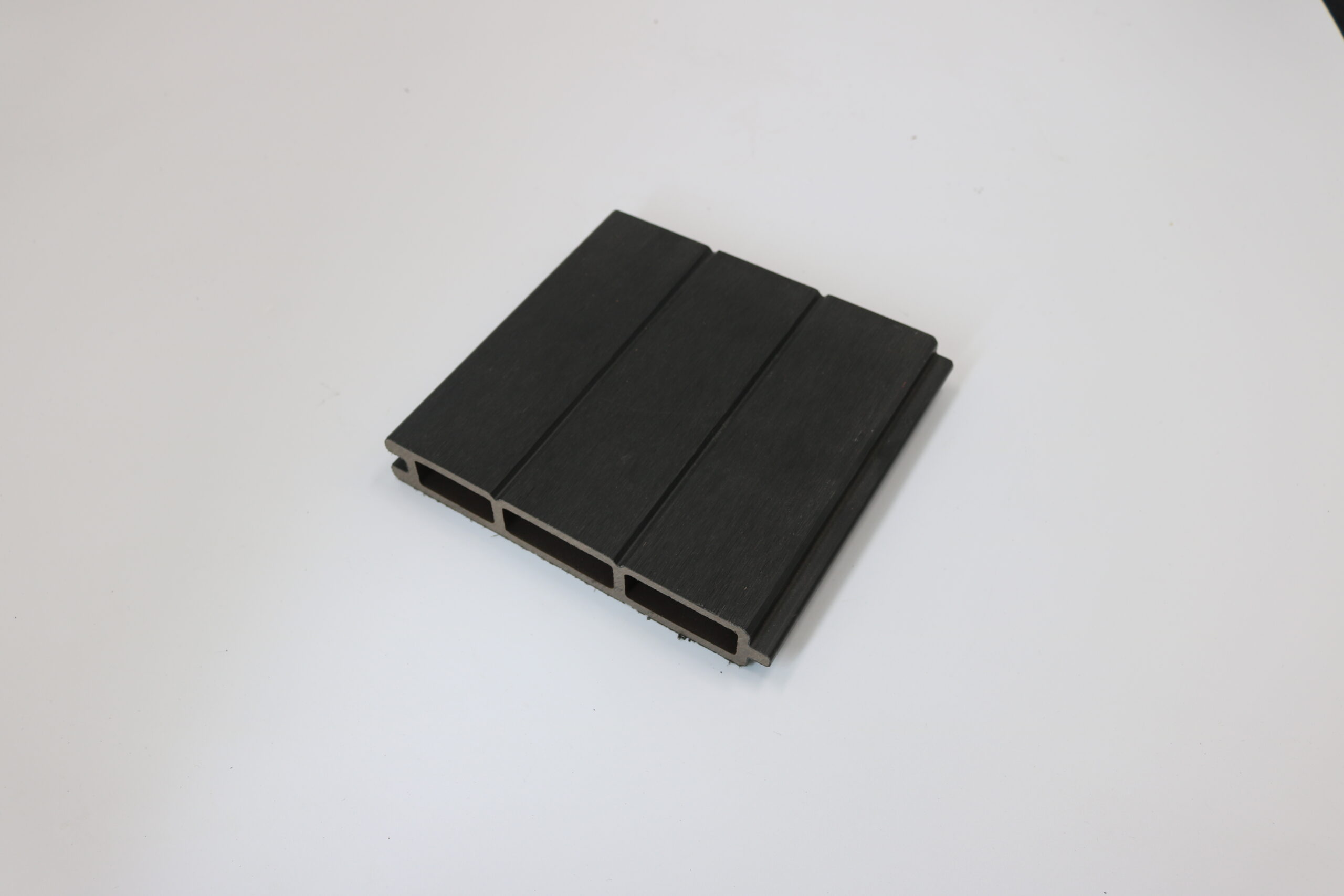

WPC Railing & Fencing
Robust and stylish garden boundary solutions with 100% weather resistance.

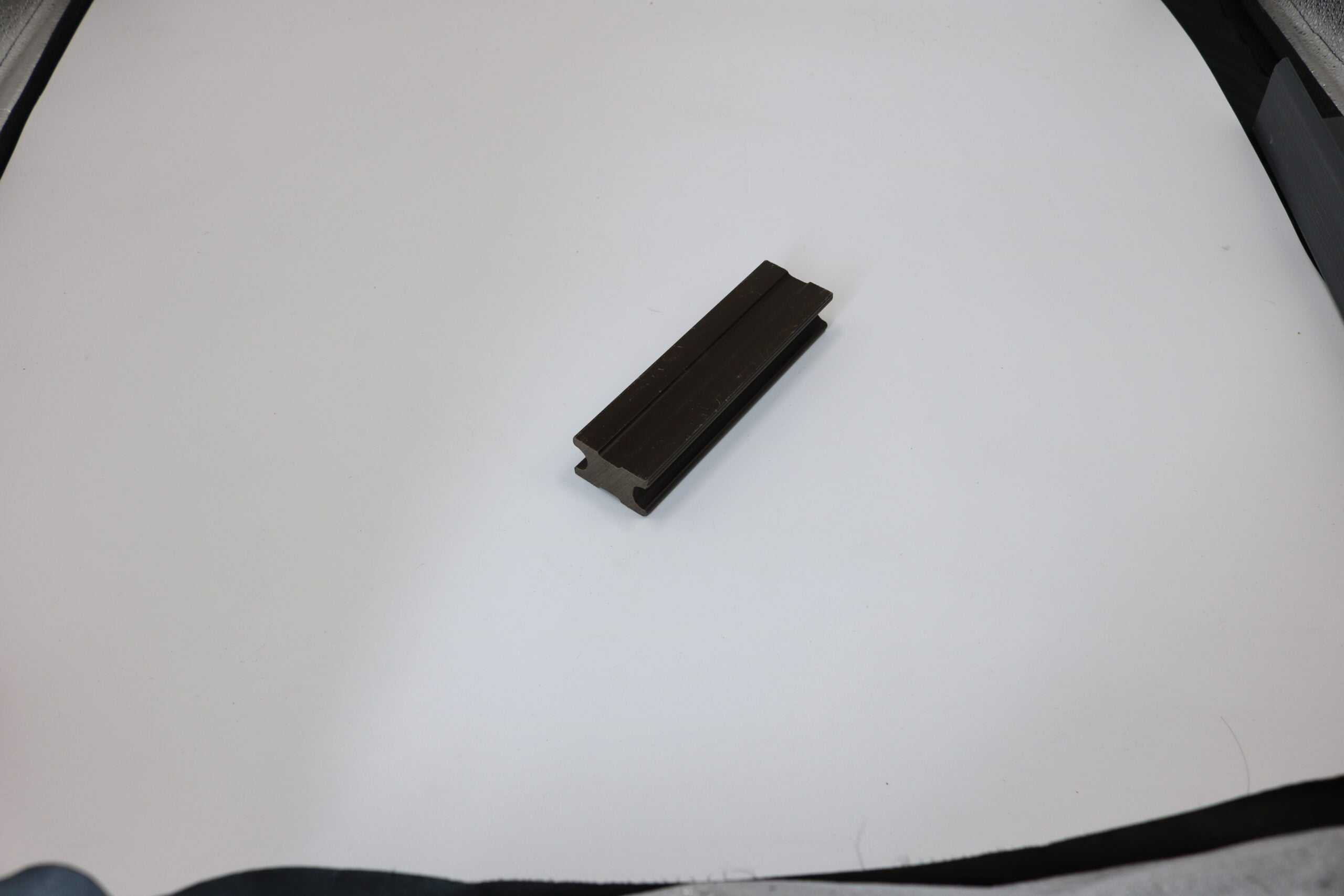

WPC Accessories
Professional installation kits including hidden clips, joists, and edge trims.
Start Your WPC Wall Panel Project Today
Direct from China’s wood and logistics center. Get professional technical support and factory-direct wholesale pricing for your exterior siding and anti-UV cladding needs.
- Direct Call: +86 155 8905 0688
- WhatsApp: +86 150 6990 2045
Free Physical Sample Kit
We ship physical waterproof wall panel samples globally. Feel the texture and test the anti-UV performance before you buy.
